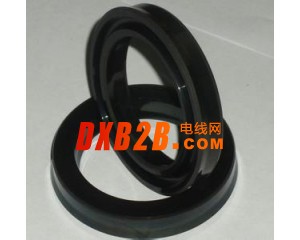

UPH油封
品牌：日本 NOK 型號：UPH油封
材料：丁腈橡膠
適用車型：所有
尺寸：5-300 mm
工作溫度：-40-120 ℃

密封件的公稱尺寸 腔體尺寸 標準型（A505） 耐熱型（F357）
d D h φd φD φD1 HA HB C NOK部品番號 名義號 NOK部品番號 名義號
6.3 16.3 7.5 6.3 16.3 15.3 8.5 10.5 2.5 CU3308D0 UPH-6.3
16.3 8 6.3 16.3 15.3 9 11 CU0024D0 UPH-6.3A
7.1 17.1 7.5 7.1 17.1 16.1 8.5 10.5 CU3309D0 UPH-7.1
17.1 8 7.1 17.1 16.1 9 11 CU0030D0 UPH-7.1A
8 18 7.5 8 18 17 8.5 10.5 CU0042D0 UPH-8
18 8 8 18 17 9 11 CU0043D1 UPH-8A CU0043D2 UPH-8AF
 20 8 10 20 19 9 11 CU0069D1 UPH-10A
11.2 21.2 7.5 11.2 21.2 20.2 8.5 10.5 CU3311D0 UPH-11.2
21.2 8 11.2 21.2 20.2 9 11 CU0081D0 UPH-11.2A
12 25 8 12 25 24 9 11 CU0093D0 UPH-12 CU0093D3 UPH-12F
 22.5 8 12.5 22.5 21.5 9 11 CU0102D0 UPH-12.5A
14 24 7.5 14 24 23 8.5 10.5 CU0121D0 UPH-14
15 25 8 15 25 24 9 11 CU0135D0 UPH-15A
28 10 15 28 27 11 13 CU0137D0 UPH-15
16 26 7.5 16 26 25 8.5 10.5 CU0156D0 UPH-16 CU0156D2 UPH-16F
18 28 8 18 28 27 9 11 CU0182D0 UPH-18A CU0182D4 UPH-18AF
31 10 18 31 30 11 13 3.5 CU0186D0 UPH-18
20 30 8 20 30 29 9 11 CU0215D1 UPH-20A CU0215D2 UPH-20AF
33 10 20 33 32 11 13 CU0221D0 UPH-20
22 35 10 22 35 34 11 13 CU0249D0 UPH-22
22.4 32.4 8 22.4 32.4 31.4 9 11 CU0263D0 UPH-22.4A CU0263D3 UPH-22.4AF
35.4 10 22.4 35.4 34.4 11 13 CU0265D1 UPH-22.4
25 35 8 25 35 34 9 11 CU0282D2 UPH-25A CU0282D3 UPH-25AF
38 10 25 38 37 11 13 CU0288D0 UPH-25
25.5 35.5 8 25.5 35.5 34.5 9 12 CU0309D0 UPH-25.5
27 40 10 27 40 39 11 14 CU2347D0 UPH-27
28 40 10 28 40 39 11 14 CU0330D2 UPH-28A CU0330D6 UPH-28AF
41 10 28 41 40 11 14 CU0335D0 UPH-28
30 43 10 30 43 42 11 14 CU0364D0 UPH-30 CU0364D2 UPH-30F
45 10 30 45 44 11 14 CU0368D2 UPH-30A CU0368D8 UPH-30AF
31.5 44.5 10 31.5 44.5 43.5 11 14 CU0385D0 UPH-31.5
34 50 12 34 50 49 13 16 CU0408D0 UPH-34
35 50 10 35 50 49 11 14 4 CU0437D4 UPH-35B CU0437D5 UPH-35BF
50 12 35 50 49 13 16 CU0438D0 UPH-35
35.5 50.5 10 35.5 50.5 49.5 11 14 CU0456D2 UPH-35.5A CU0456D6 UPH-35.5AF
51.5 12 35.5 51.5 50.5 13 16 CU0458D0 UPH-35.5 CU0458D2 UPH-35.5F
40 55 10 40 55 54 11 14 CU0505D3 UPH-40A CU0505D2 UPH-40AF
56 12 40 56 55 13 16 CU0509D0 UPH-40
60 12 40 60 59 13 16 CU0514D0 UPH-40C
41 56 10 41 56 55 11 14 CU0523D0 UPH-41
45 60 10 45 60 59 11 14 CU0577D5 UPH-45A CU0577D9 UPH-45AF
61 12 45 61 60 13 16 CU0580D0 UPH-45 CU0580D3 UPH-45F
47 63 12 47 63 62 13 16 CU0591D0 UPH-47
48 63 10 48 63 62 11 14 CU0601D1 UPH-48 CU0601D4 UPH-48F
50 65 10 50 65 64 11 14 CU0631D2 UPH-50A CU0631D7 UPH-50AF
66 12 50 66 65 13 16 CU0635D0 UPH-50 CU0635D3 UPH-50F
51 71 12 51 71 70 13 16 CU0669D0 UPH-51
53 69 12 53 69 68 13 16 CU3317D0 UPH-53
55 71 12 55 71 70 13 16 CU0704D1 UPH-55
60 76 12 60 76 75 13 16 CU0757D1 UPH-60
80 12 60 80 79 13 16 CU0761D1 UPH-60A CU0761D6 UPH-60AF
63 79 12 63 79 78 13 16 CU0791D0 UPH-63
83 12 63 83 82 13 16 CU0793D1 UPH-63A CU0793D3 UPH-63AF
64 80 12 64 80 79 13 16 CU2123D1 UPH-64 CU2123D2 UPH-64F
70 90 12 70 90 89 13 16  CU0862D1 UPH-70A CU0862D4 UPH-70AF
90 15 70 90 89 16 19 CU0864D0 UPH-70 CU0864D2 UPH-70F
75 95 12 75 95 94 13 16 CU0910D1 UPH-75A
95 15 75 95 94 16 19 CU0911D1 UPH-75 CU0911D2 UPH-75F
80 100 12 80 100 99 13 16 CU0948D1 UPH-80A CU0948D9 UPH-80AF
100 15 80 100 99 16 19 CU0949D2 UPH-80 CU0949D3 UPH-80F
85 105 12 85 105 104 13 16 CU0989D1 UPH-85A CU0989D3 UPH-85AF
105 15 85 105 104 16 19 CU0990D0 UPH-85
90 110 12 90 110 109 13 16 CU1030D3 UPH-90A CU1030D7 UPH-90AF
110 15 90 110 109 16 19 CU1031D0 UPH-90 CU1031D3 UPH-90F
92 112 12 92 112 111 13 16 CU1042D1 UPH-92A
95 115 12 95 115 114 13 16 CU1056D0 UPH-95A CU1056D4 UPH-95AF
115 15 95 115 114 16 19 CU1057D1 UPH-95 CU1057D3 UPH-95F
100 120 12 100 120 118 13 16 CU1089D3 UPH-100A CU1089D7 UPH-100AF
120 15 100 120 118 16 19 CU1091D0 UPH-100 CU1091D3 UPH-100F
125 15 100 125 123 16 19 CU1096D0 UPH-100B CU1096D3 UPH-100BF
105 125 15 105 125 123 16 19 CU1129D2 UPH-105 CU1129D4 UPH-105F
106 126 15 106 126 124 16 19 CU1138D0 UPH-106
110 130 15 110 130 128 16 19 CU1165D1 UPH-110 CU1165D4 UPH-110F
112 132 15 112 132 130 16 19 CU1182D0 UPH-112 CU1182D3 UPH-112F
115 135 15 115 135 133 16 19 CU1198D0 UPH-115
118 138 15 118 138 136 16 19 CU1207D0 UPH-118 CU1207D2 UPH-118F
120 140 15 120 140 138 16 19 CU1224D2 UPH-120 CU1224D1 UPH-120F
125 145 15 125 145 143 16 19 6.5 CU1257D0 UPH-125A
150 19 125 150 148 20 23 CU1933D0 UPH-125 CU1933D2 UPH-125F
130 150 15 130 150 148 16 19 CU1284D2 UPH-130A CU1284D4 UPH-130AF
155 19 130 155 153 20 23 CU3320D0 UPH-130
132 152 15 132 152 150 16 19 CU1292D0 UPH-132A
157 19 132 157 155 20 23 CU2703D1 UPH-132 CU2703D2 UPH-132F
135 155 15 135 155 153 16 19 CU1305D0 UPH-135B
160 15.7 135 160 158 17 20 CU3322D0 UPH-135A
160 19 135 160 158 20 23 CU1960D0 UPH-135
140 160 15 140 160 158 16 19 CU1327D1 UPH-140A CU1327D4 UPH-140F
165 19 140 165 163 20 23 CU1332D2 UPH-140
145 165 15 145 165 163 16 19 CU1344D0 UPH-145A
170 19 145 170 168 20 23 CU2348D0 UPH-145 CU2348D1 UPH-145F
155 180 15 155 180 178 16 20 CU1391D2 UPH-155B CU1391D4 UPH-155BF
180 19 155 180 178 20 24 CU1393D0 UPH-155
160 185 15 160 185 183 16 20 CU1413D0 UPH-160A
185 19 160 185 183 20 24 CU2349D0 UPH-160
175 200 15 175 200 198 16 20 CU1461D2 UPH-175B CU1461D3 UPH-175BF
200 19 175 200 198 20 24 CU1463D1 UPH-175
180 205 15 180 205 203 16 20 CU1490D0 UPH-180A
205 19 180 205 203 20 24 CU1492D0 UPH-180
200 225 15 200 225 223 16 20 CU1547D0 UPH-200A CU1547D4 UPH-200AF
225 19 200 225 223 20 24 CU2350D0 UPH-200
225 250 18 225 250 248 19 23 CU1625D0 UPH-225A
250 19 225 250 248 20 24 CU1626D0 UPH-225
236 261 19 236 261 259 20 24 CU1649D1 UPH-236
250 275 19 250 275 273 20 24 CU1683D1 UPH-250
265 297 24 265 297 295 26 30  CU1714D0 UPH-265
270 300 18 270 300 298 19 23 CU1722D0 UPH-270A
300 24 270 300 298 26 30 CU1725D0 UPH-270
