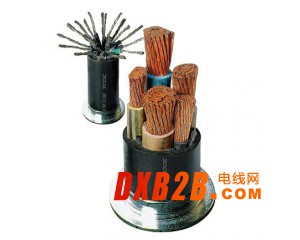

額定電壓450/750及以下橡套電線電纜
COLLIERY RUBBER SHEATH CABLE
一、執行標準 Executive standard
GB/T 5013.4-2008 JB/T 8735.2-2011 Q/YL10-2015
二、用途 Usage
本產品適用于交流額定電壓為450/750V及以下的家用電器、電動工具和各類移動設備。
This product is suitabel for rated ac voltage 450/750V or below domestic appliaces, poweroperated
tools and various portable electric equipments.
三、使用條件 Exploitation conditions
1.額定電壓Uo/U:YQ、 YQW 型300/300V，
YZ ，60245IEC 53 （YZ ）型300/500V
YZW， 60245IEC 57 （YZW ）型300/500V
YC， YCW 6，0245IEC 66 （YCW）型 450/750V
2.線芯的長期允許工作溫度不超過65℃。
3.W型電纜具有耐氣候和一定的奶油性能，適宜于在戶外或解除油污的場合使用。
1)Rated voltage Uo / U: YQ, YQW type 300/300V,
YZ, 60245IEC 53 (YZ)-type 300/500V
YZW, 60245IEC 57 (YZW) type 300/500V
YC, YCW, 60245IEC 66 (YCW) type 450/750V
2)Long time allow working temperature of wire core is not more than 65 .
3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.
四、型號、名稱及使用場所（見表1）Model name and usage:(see table 1)
表1 table 1
型號Model 名稱Name 使用場所Main usage
YQ,YQW
輕型橡套軟電纜
Light model rubber sheath flexible cable
用于輕型移動電器設備和工具
Used for light portable electric equipment and tools
60245IEC53(YZ)
YZ
60245IEC57(YZW)
YZW
中型橡套軟電纜
Middle model rubber sheath flexible cable
用于各種移動電器設備和工具
Used for various portable electric equipment and tools
60245IEC66(YCW)
YCW
YC
重型橡套軟電纜
Heavy model rubber sheath flexible cable
用于各種移動電器設備，能承受較大的機械外力作用
Used for various portable electric equipment which can bear larger mechanieal force effect
五、尺寸、重量及技術參數（見表2-4）Size,weight and technological date(see table 2-4)
300/300V YQ,YQW輕型
300/300V YQ,YQW light model
表2table 2
芯數×標稱截面
Cores Nominal
section (mm2)
導電單絲***直徑
Conductive core(mm)
平均直徑
average outer diameter (mm2)
20℃導體電阻≤(Ω/km)
20 conductor resistance
參考重量
reference weight(kg/km)
下限
minimun
上限
maximun
銅芯
Copper core
鍍錫銅芯
tin-wellded Copper core
YQ YQW
2×0.3 0.16 4.3 5.8 69.2 71.2 30 31.5
2×0.5 0.16 4.8 6.4 39.0 40.1 43 45.5
3×0.3 0.16 4.6 6.1 69.2 71.2 36 38.1
3×0.5 0.16 5.1 6.7 39.0 40.1 74 77.0
