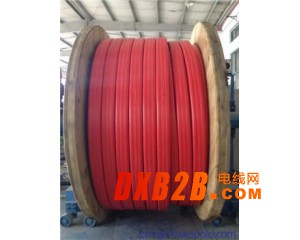

1、 Silicone rubber flat cable product overview:



硅橡膠扁電纜采用硅橡膠作絕緣或護套材料，由于硅橡膠本身具有耐高溫、耐寒、柔軟、耐磨、防腐等特性，因此該電纜高溫環境下電氣性能穩定，抗老化性能好，使用壽命長，適合于交流1KV及以下具有抗拉、耐熱、防腐等特殊要求的行車、臺車、傳輸機械等移動設備和電器用動力傳輸線及控制、照明、通訊線路，本產品已廣泛應用于冶金、電力、化工、船舶、港口等行業。



Silicon rubber flat cable is made of silicone rubber as insulation or sheath material. Because silicon rubber has the characteristics of high temperature resistance, cold resistance, softness, abrasion resistance, corrosion resistance and so on, the cable has high electrical performance, good anti-aging performance and long service life under high temperature environment. It is suitable for mobile 1KV, below, with special requirements such as traction, heat resistance, anticorrosion, and so on. Power transmission lines and control, lighting, ...munication lines for equipment and electrical appliances, this product has been widely used in metallurgy, electric power, chemical industry, ships, ports and other industries.



二、硅橡膠扁電纜產品特點：硅橡膠扁電纜YGCB扁電纜卷筒扁電纜2*44



2、 Features of silicone rubber flat cable:



硅橡膠扁電纜使用于工作電壓450/750V級以下，環境溫度-40~70℃的起重、運輸、機械、電氣、礦山、等行業各種移動動力裝置的電源連接及控制信號照明等。



Silicon rubber flat cable is used for power connection and control signal lighting of various mobile power devices in hoisting, transportation, machinery, electrical, mining and other industries with working voltage below 450 / 750V and ambient temperature of - 40 ~ 70 ℃.



硅橡膠扁電纜絕緣和護套等采用硅橡膠材料。來提高電纜柔軟特性及防腐耐寒等性能?？砂搭櫩托枰诰€芯兩側增加鋼絲繩或其他承力元件。



The insulation and sheath of silicone rubber flat cable are made of silicone rubber. To improve the soft characteristics of the cable, anti-corrosion and cold resistance. Wire rope or other load-bearing elements can be added on both sides of the core according to the needs of customers.



硅橡膠扁電纜主要用于發電、冶金、化工、港口、及礦山等惡劣環境作為移動電器設備之間的電器連接。



Silicon rubber flat cable is mainly used for power generation, metallurgy, chemical industry, port, mine and other harsh environment as the electrical connection between mobile electrical equipment.



硅橡膠扁電纜產品執行標準： Q/HX18



Executive standard of silicone rubber flat cable: Q / Hx18



額定電壓：0.6/1kV



Rated voltage: 0.6/1kv



工作溫度：-60～＋180℃



Working temperature: - 60 ～＋ 180 ℃
